Tongde 3DGB Triple Differential CNC Metal Gearbox

RM 288.00
- +
icon-bag Add to Cart
Home

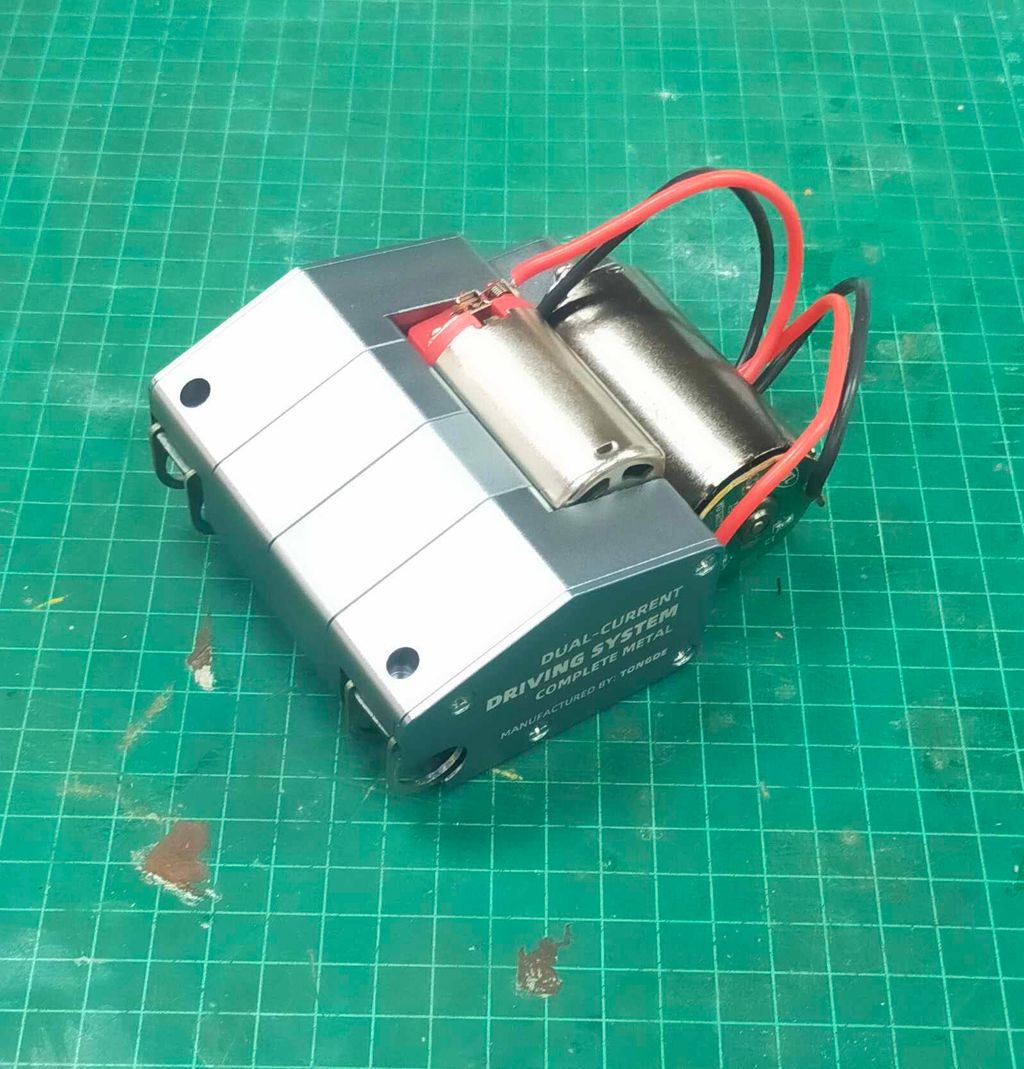

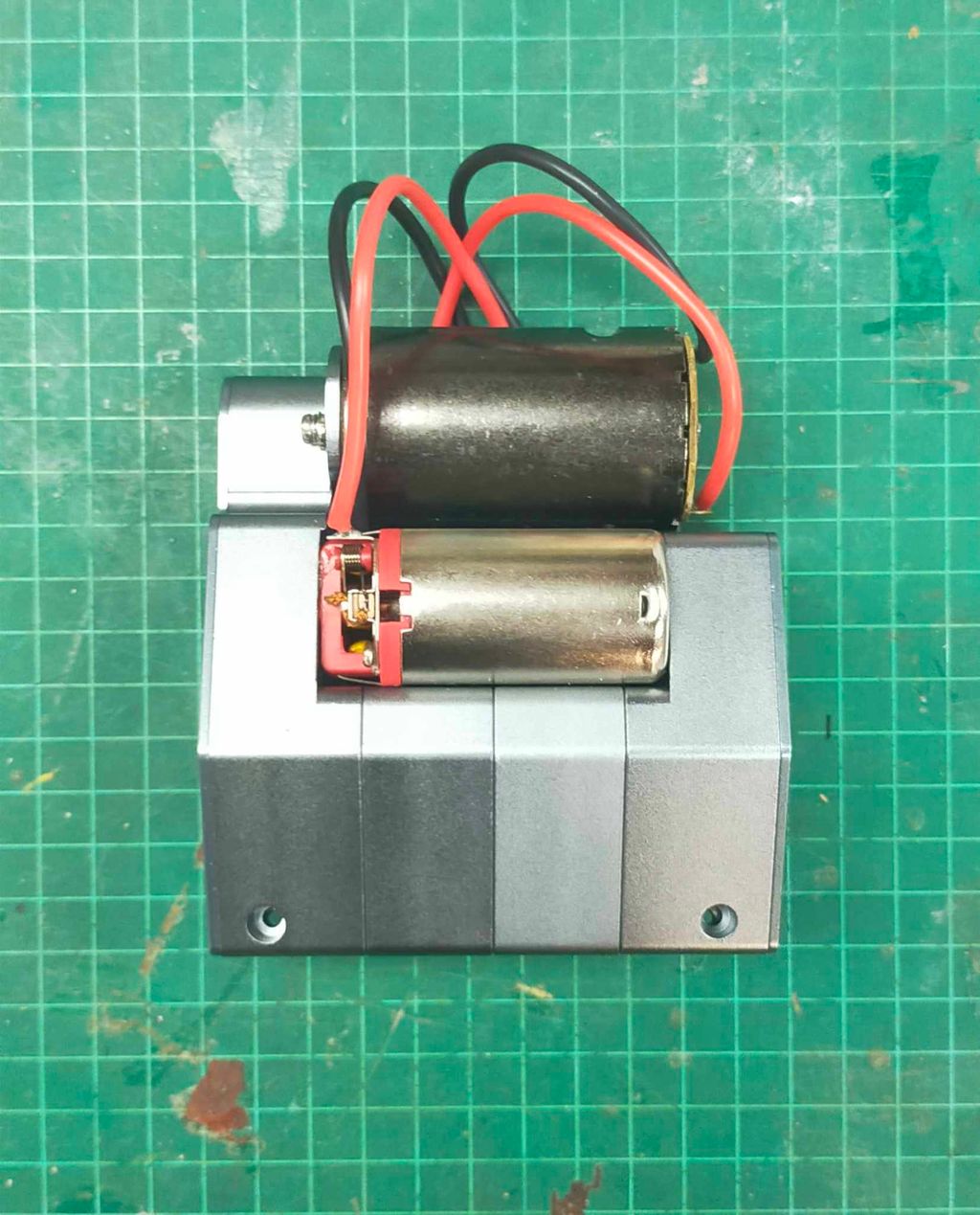

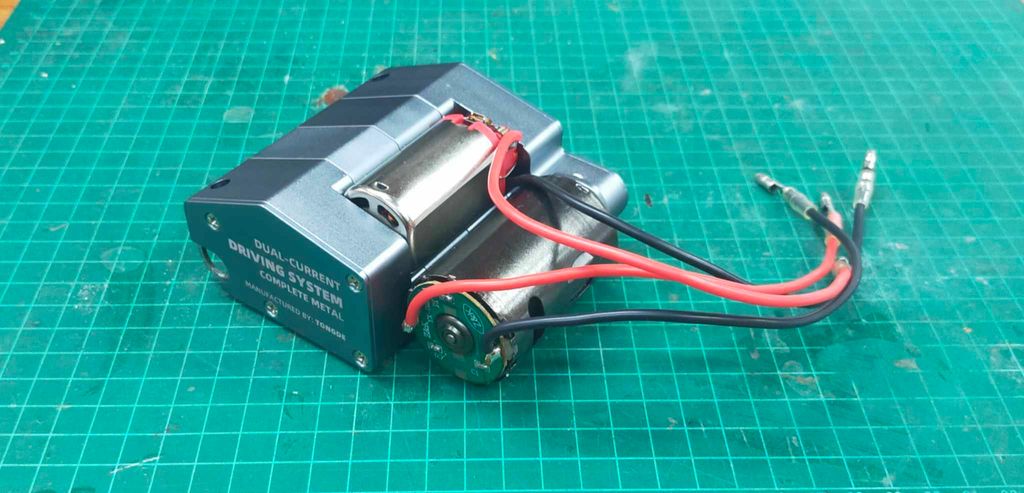

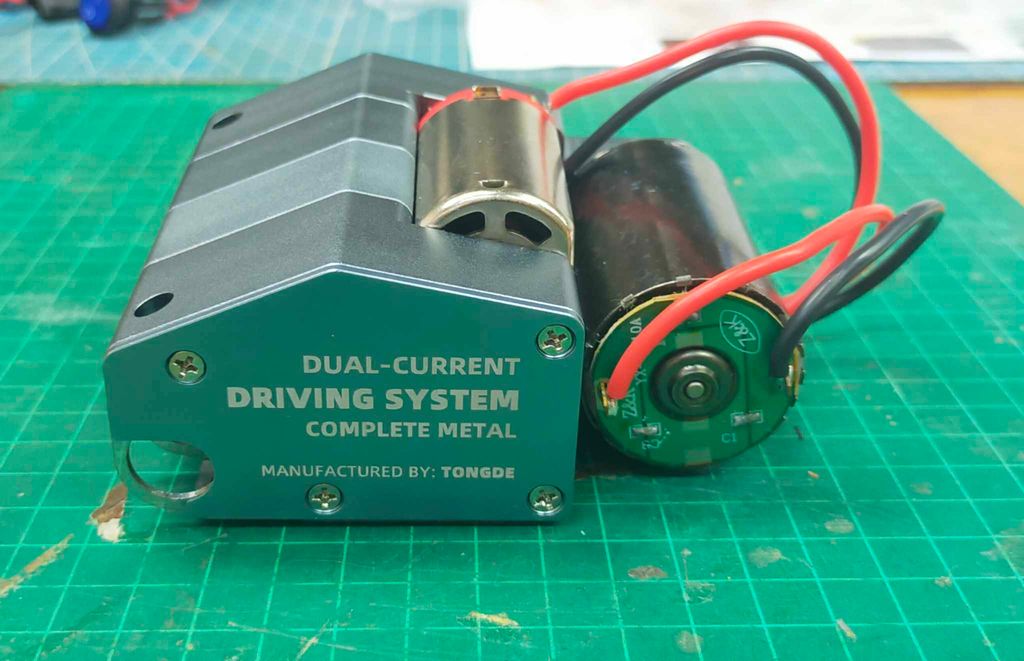

This is another variant of Triple Differential Gearbox with high quality CNC metal gearbox comes with a powerful 540 size motor drives beefy steel gears to drive even the heaviest 1/16 scale all-metal RC Tanks without a sweat.

The main motor drives both output shafts equally- eliminating different shaft speeds that constantly needed to fixed with the radio trim. DRIVE STRAIGHT without needing to trim!

The turning motor provides a different speed on the side you want to turn, and does it smooth and linear- no more jerky turns!

Heavy duty stainless steel mounts provides a secure and stable platform to mount the gearbox and put all that power down.

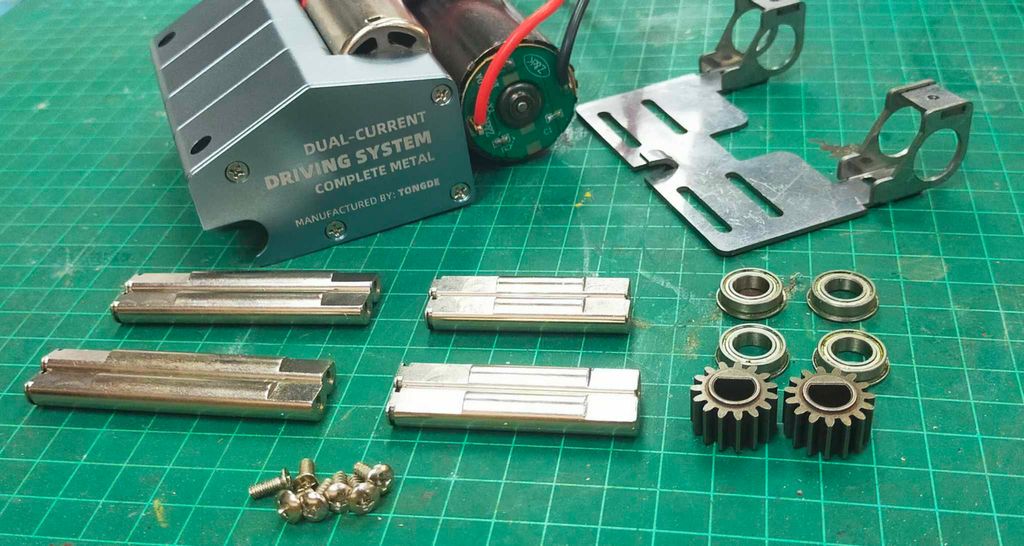

Output driveshafts are supported by 2 beefy axial bearings, eliminating driveshaft wobble!

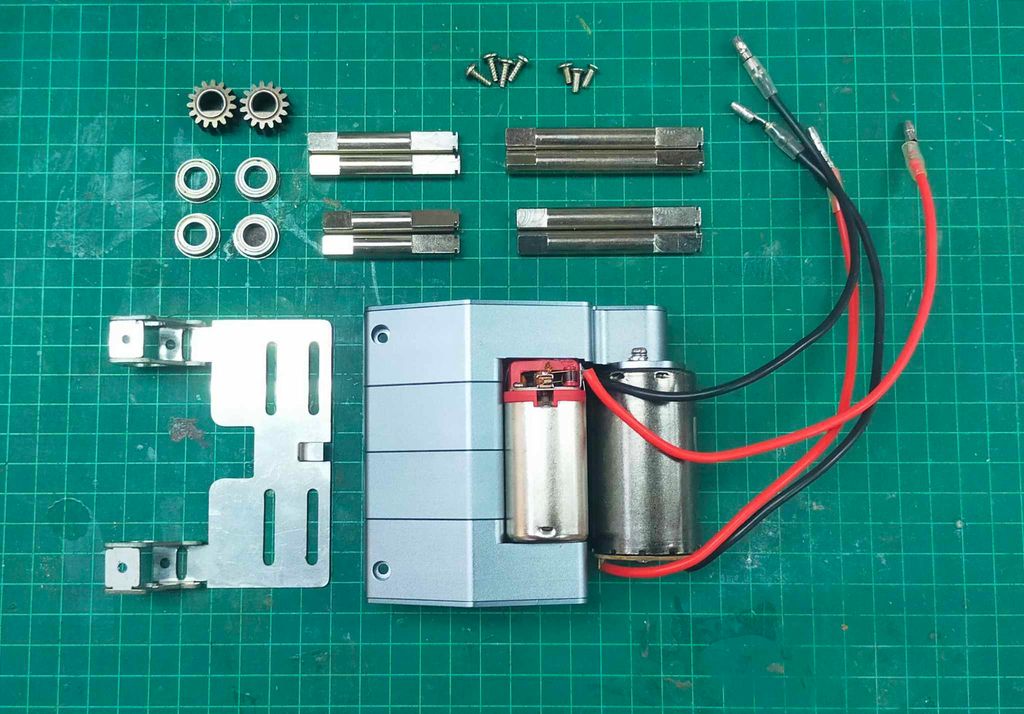

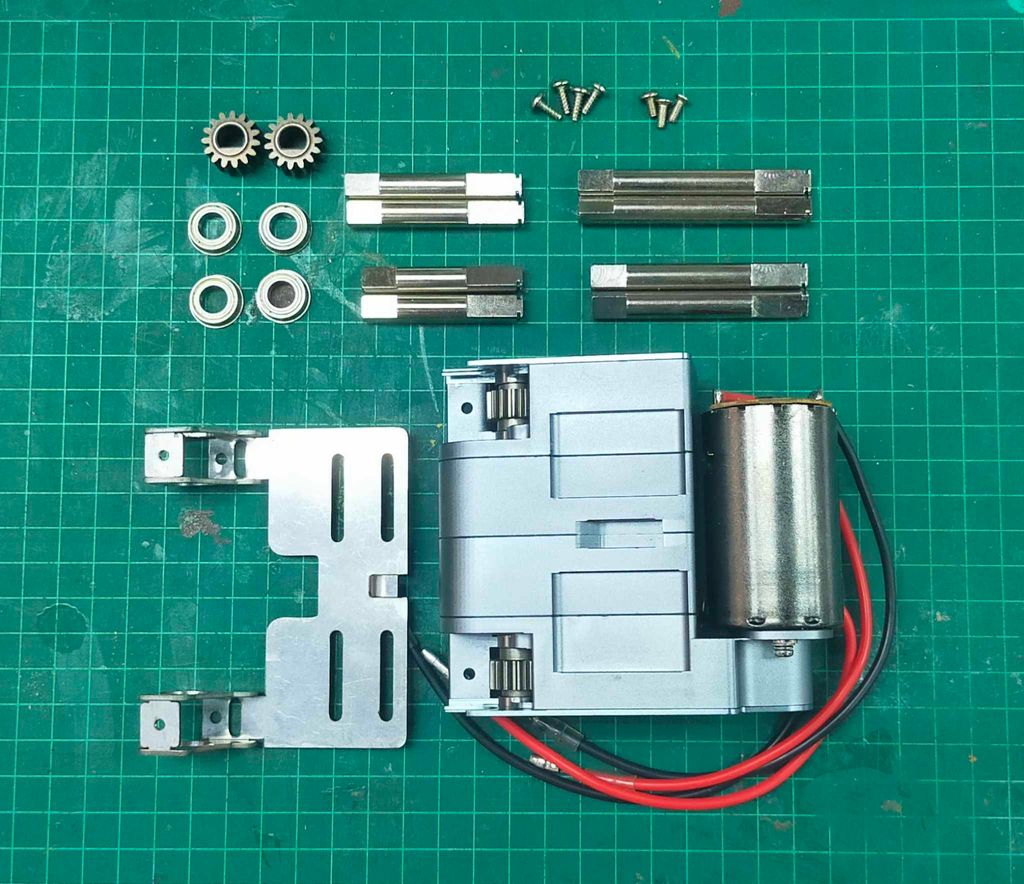

The gearbox and mounting system is modular- in theory you just need a tank specific mount + driveshaft and you can plug in the gearbox into the current tank with just 2 screws!

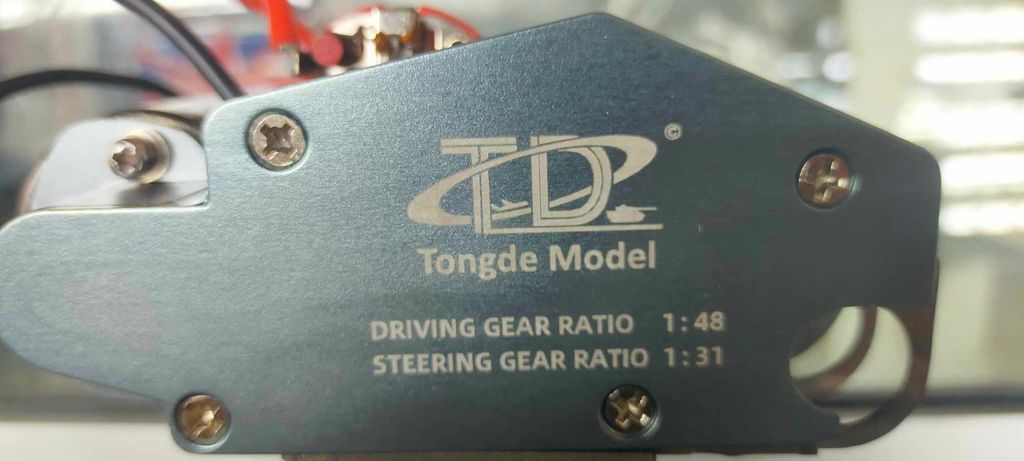

Note : this specific gearbox Driving Gear Ratio is 1:48 and Steering Gear Ratio is 1:31 , so it is not a gearbox for fast tank, it is a high torque slow gearbox like mato gearboxs, only suitable for tanks that you prefer them slow and " realistic "

Leopard 2, Challenger 2, M1A2 Abrams , Tiger 2 and T-72 / T-90


Will work with: (need to adjust the board settings)

HL v6.0 / v6.1 / v7.0 / v7.1
TK boards
IBU
El-Mod
